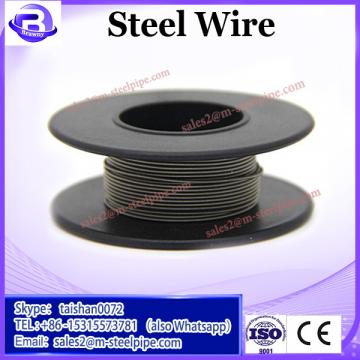

304 Spring Tempered Stainless Steel Wire
- Steel Wire
Steel Wire
- China
- SGS
- One set 304 Spring Tempered Stainless Steel Wire
- [email protected]
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 32
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
304 Spring Tempered Stainless Steel Wire
AISI |
C |
SI |
MN |
P |
S |
NI |
CR |
MO |
TENSION |
ELONGATION |
302 |
≤0.15 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8-10 |
17-19 |
|
750-850Mpa |
≥35% |
304 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8-10.5 |
18-20 |
|
750-850Mpa |
≥35% |
304L |
≤0.03 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8-10 |
18-20 |
|
750-850Mpa |
≥35% |
316 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
10-14 |
16-18 |
2.0-3.0 |
|
≥35% |
316L |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
12-15 |
16-18 |
2.0-3.0 |
|
≥35% |
321 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8-11 |
17-19 |
|
|
≥35% |
Stainless Steel Wire Specification:
Wire Diameter(mm) |
Specification |
|
Tolerance(mm) |
Max.Deviation Tolerance(mm) |
|
0.020-0.049 |
+0.002;-0.001 |
0.001 |
0.050-0.074 |
+0.002;-0.002 |
0.002 |
0.075-0.089 |
+0.002;-0.002 |
0.002 |
0.090-0.109 |
+0.002;-0.002 |
0.002 |
0.110-0.169 |
+0.003;-0.003 |
0.003 |
0.170-0.184 |
+0.004;-0.004 |
0.004 |
0.185-0.199 |
+0.004;-0.004 |
0.004 |
0.200-0.299 |
+0.005;-0.005 |
0.005 |
0.300-0.319 |
+0.006;-0.006 |
0.006 |
0.320-0.499 |
+0.006;-0.006 |
0.006 |
Wire Reels For Stainless Steel Wire | ||||||||
Reel Type |
D |
d |
L |
W |
A |
H |
Reel Weight |
Wire Weight Per Reel |
DIN100 |
100 |
63 |
100 |
80 |
10 |
16 |
0.12 |
1.0 |
DIN125 |
125 |
80 |
124 |
100 |
12 |
20.6 |
0.20 |
3.5 |
DIN160 |
160 |
100 |
159 |
127 |
16 |
22 |
0.48 |
5 |
DIN200 |
200 |
125 |
200 |
160 |
20 |
22 |
0.60 |
10 |
DIN250 |
250 |
160 |
200 |
160 |
20 |
22 |
1.24 |
20 |
P3C |
119 |
54 |
149 |
129 |
10 |
20.6 |
0.20 |
4.5 |
PL3 |
120 |
76 |
150 |
130 |
10 |
20.6 |
0.20 |
3.5 |
NP2 |
100 |
60 |
129 |
110 |
9.5 |
20.6 |
0.12 |
2.5 |
PL1 |
80 |
50 |
120 |
100 |
10 |
20 |
0.08 |
1.0 |
P1 |
100 |
50 |
90 |
70 |
10 |
20 |
0.10 |
1.0 |
Application
Production Process
Packaging & Shipping
1. Are you a manufacture?
Yes ,we have been in providing the products in this field for15 years.
2.Is customized available ?
Yes ,according to your detailed drawings you provide.
3.How many days will the samples be finished ?And how about the mass production ?
Generally the samples will be sent immediately by the air express in 3~5 days if the goods are in stock .Normally within 30 days or according to your order .
4.what's the payment terms?
Usually 30 %as deposit .70¾fore shipment by T/T,western union acceptable for small account and L/C acceptable for large amount .
Steel Wire can be use for redrawing,they are widely used for manufacturing steel wire rope,cable,bailing pasture fence, armoring cable, fence,strand etc. Our 304 Spring Tempered Stainless Steel Wire have excellent toughness and flexibility , thick galvanized layer, strong corrosion resistance and other properties .
304 Spring Tempered Stainless Steel Wire are widely used for manufacturing overhead aluminum conductor and overhead steel conductor.304 Spring Tempered Stainless Steel Wire are smooth and round.The surface have not any flows,scratches,twists seams,splits.
JHJHVJGHVB
Steel Wire is widely used in the industrial fields and the daily lives. 304 Spring Tempered Stainless Steel Wire can be as the basic material of many meshes, like weld wire mesh, crimped wire mesh, diamond mesh, hexagonal wire netting, hardwire cloth, slope protect wire mesh, gabion box, filter screen, mine screen mesh, chain link fence, fence netting etc.
Steel Wire also used in other fields like galvanized wire mesh fenceing for the protection of agricultural and commercial properties; used in various automotive components; communication equivaments; packaging products; manufacture of galvanized barbed wire; galvanized wire rope of low and high strength; used in medical components etc.
